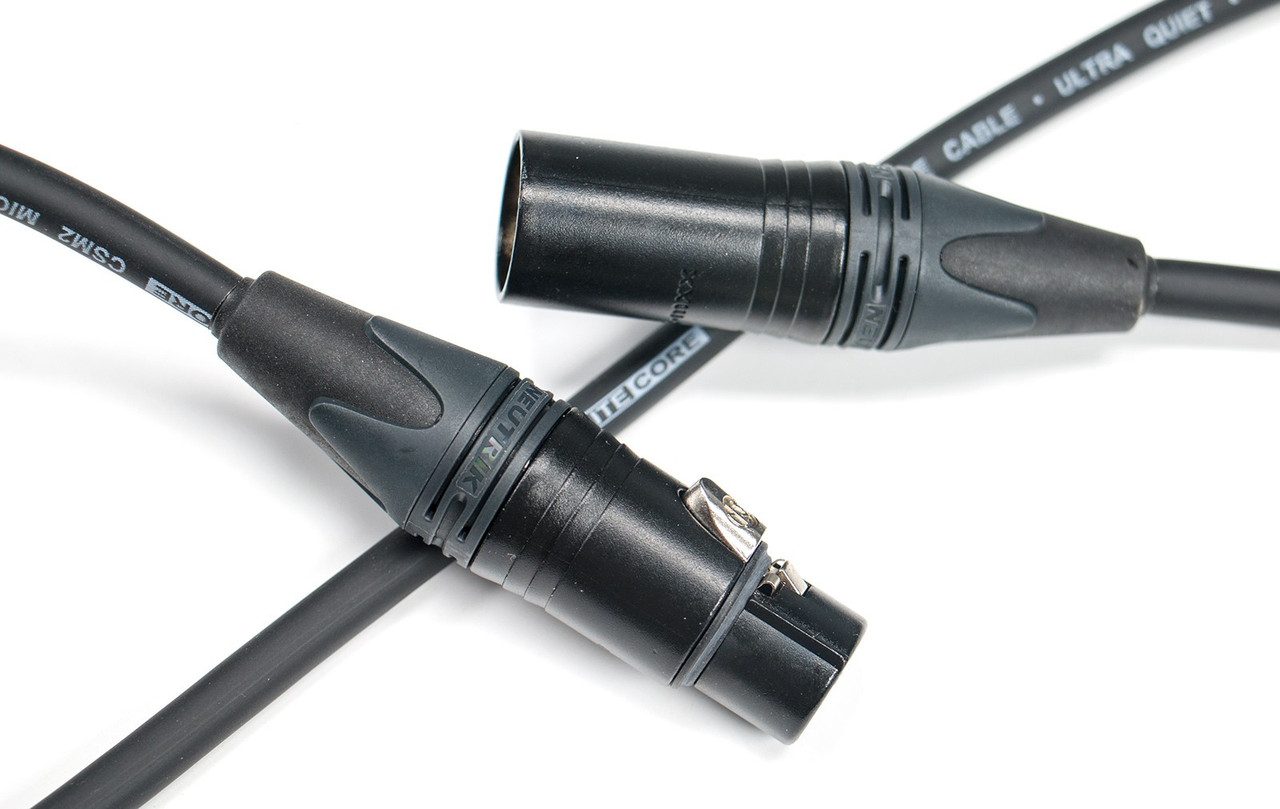

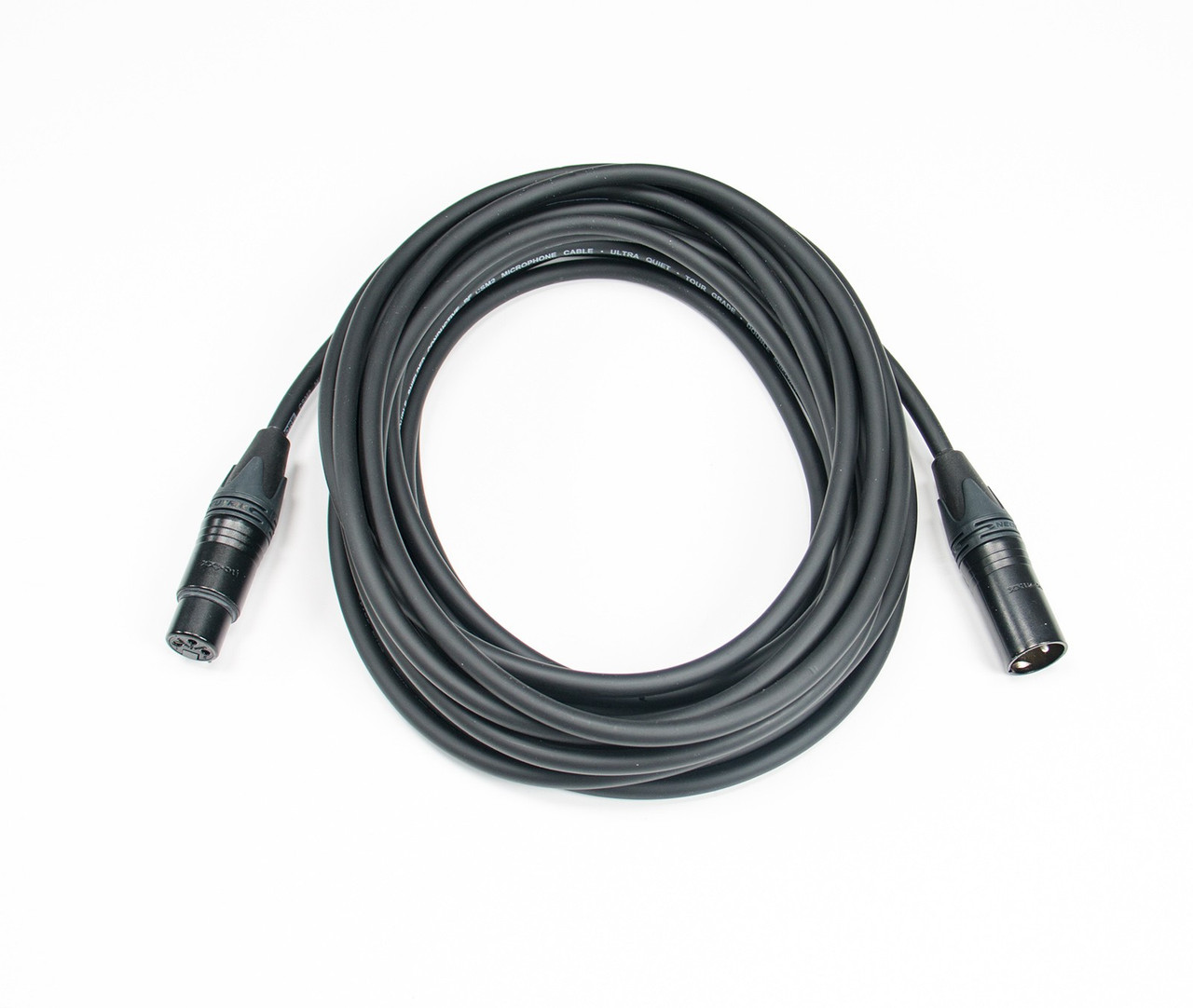

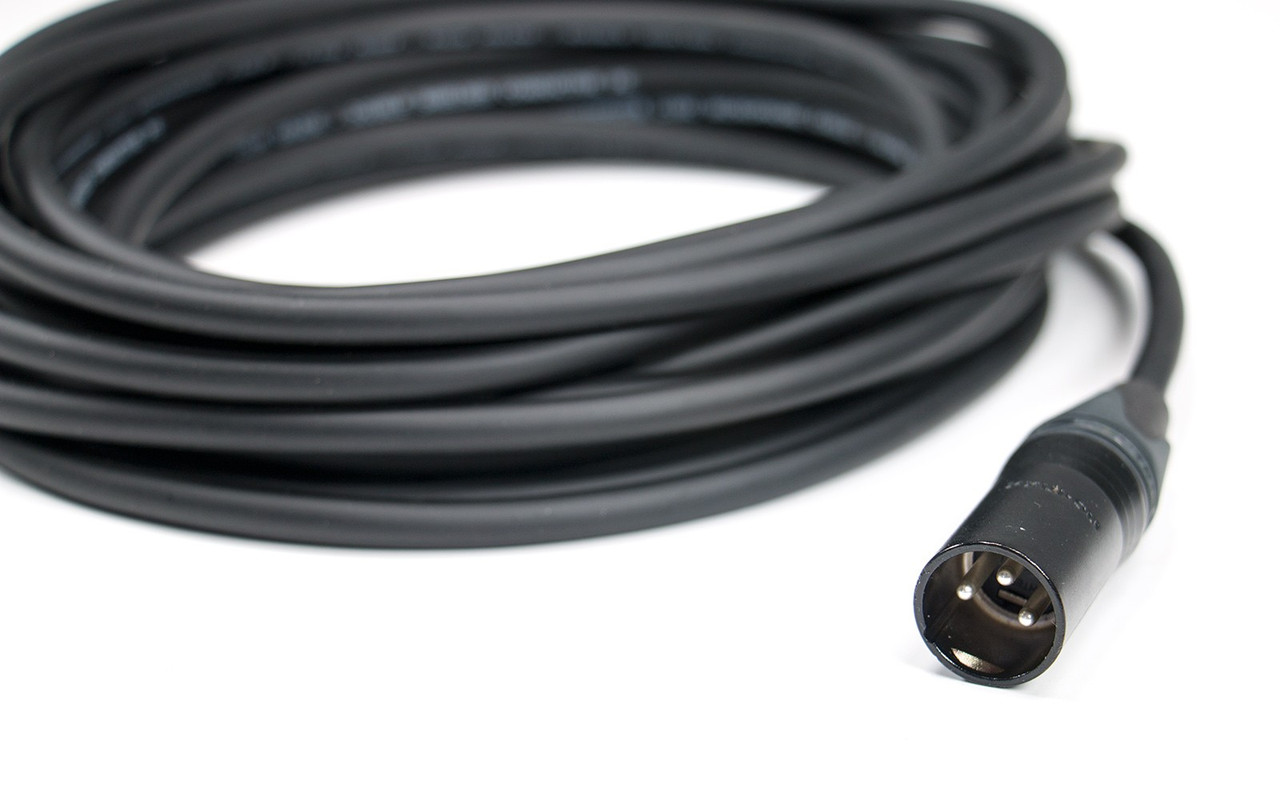

Elite Core CSM2 Stage Grade Ultra Quiet and Ultra Durable Mic Cable

Elite Core’s CSM2 Custom Shop mic cables are hand-built by skilled technicians in our facility in Conway, Arkansas, USA. Only the finest available materials and most effective techniques are used. Every detail - the cable construction, the connector choice, the solder, the flux, the shrink tube, the testing, and the packaging, are each carefully chosen to create the finest stage and touring microphone cable available.

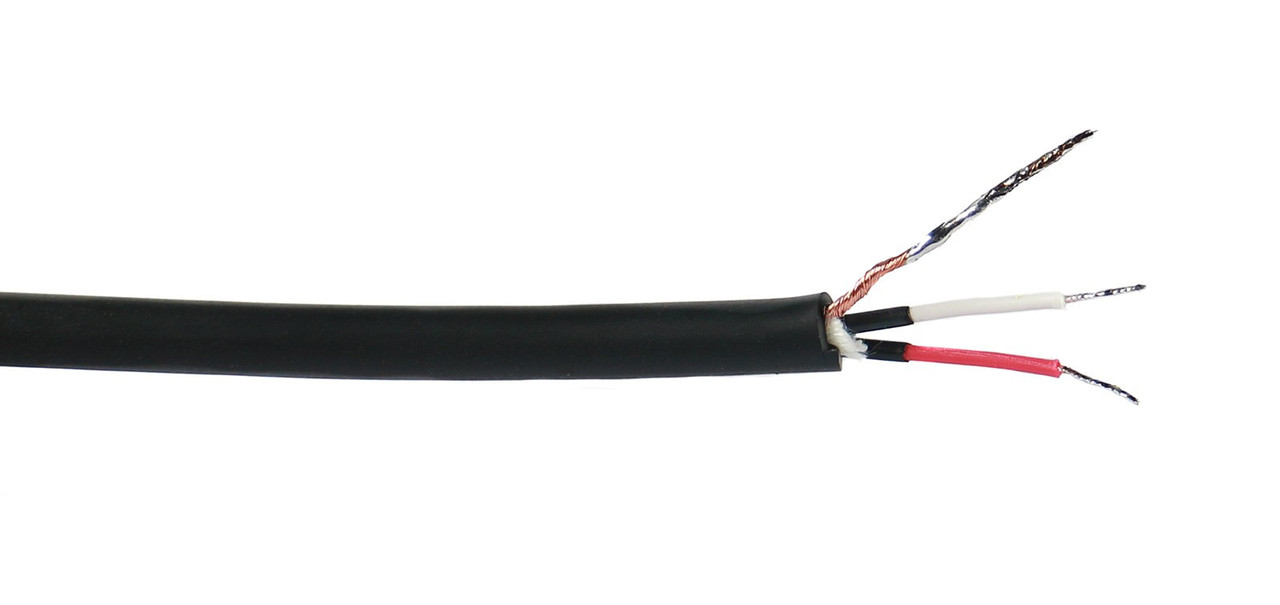

• Technical:

  • Conductors: 20 AWG, 20 x 0.12mm Stranded Copper

  • Insulation: Polyethylene

    • Diameter: 1.4mm

    • Thickness: 0.4mm

  • Covering: Conductive Polyethylene

    • Diameter: 1.8mm

    • Thickness: 0.4mm

  • Shielding: Helical Copper

    • Coverage: 62%

  • Outer Jacket: PVC

• Electrical:

  • Conductor DCR: 26.9 Ohm/1000ft

  • Shield DCR: 9.4 Ohm/1000ft

  • Capacitance: 41.15 pF/ft

  • Withstand Voltage: 0.5mA

  • Temp. Voltage: 60°C / 30°C
